330 GC - Tier 3

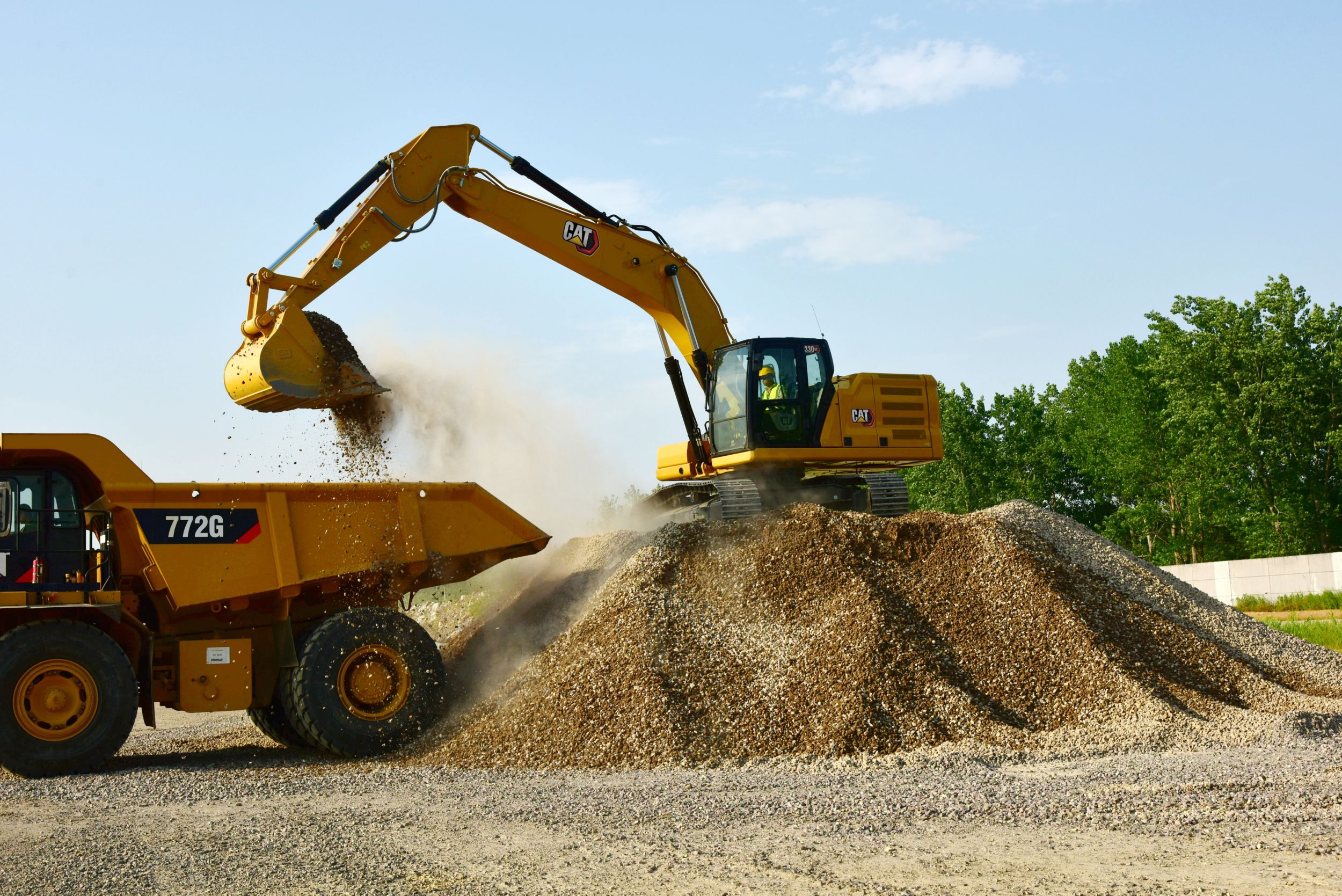

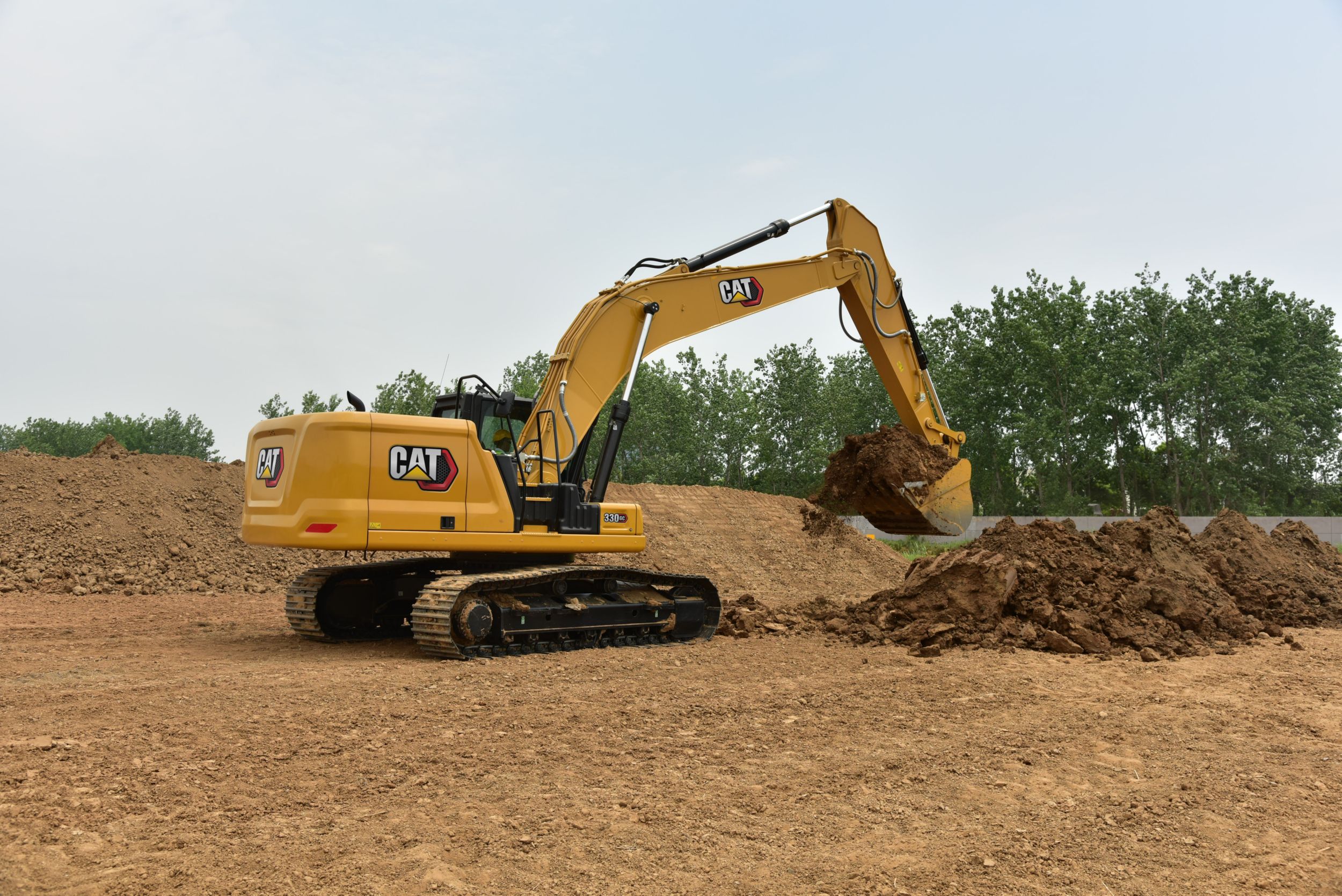

The Cat® 330 GC Excavator balances productivity with easy-to-use controls, an ergonomic cab, reduced fuel consumption by up to 10%, and longer maintenance intervals that reduce maintenance costs up to 20% – all to give you a durable, low-cost per- hour excavator for your applications. Not all features are available in all regions.

Consult your Cat dealer for specific configurations available in your region.
Net Power - ISO 9249
212 HP
Net Power - ISO 9249 (DIN)
215 hp (metric)
Engine Model
Cat C7.1
Net Power - ISO 9249
212 HP
Net Power - ISO 9249 (DIN)
215 hp (metric)
Engine Model
Cat C7.1
Engine Power - ISO 14396
213 HP
Engine Power - ISO 14396 (DIN)
216 hp (metric)
4 in
5 in
428 in³
Biodiesel Capability
Up to B20¹
Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)
¹Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: 100% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *For use of blends higher than 20% biodiesel, consult your Cat dealer. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Main System - Maximum Flow
560 l/min (148 gal/min)
Maximum Pressure - Equipment
5075 psi
Maximum Pressure - Travel
5075 psi
Maximum Pressure - Swing
4120 psi
Swing Speed
11.5 r/min
Maximum Swing Torque
77370 ft·lbf
Operating Weight
63700 lb
Standard undercarriage, Reach boom, R3.2 m (10'6") stick, Heavy Duty (HD) 1.60 m³ (2.09 yd³) bucket, 600 mm (24") triple grouser shoes and 6700 kg (14,770 lb) counterweight.
Fuel Tank Capacity
125.2 gal (US)
Cooling System
6.6 gal (US)
Engine Oil
6.6 gal (US)
Swing Drive - Each
2.6 gal (US)
Final Drive - Each
1.5 gal (US)
Hydraulic System - Including Tank
81.9 gal (US)
Hydraulic Tank
38.8 gal (US)
Reach 6.15 m (20'2")
Reach 3.2 m (10'6")
HD 1.60 m³ (2.09 yd³)
Shipping Height - Top of Cab
10 ft
Handrail Height
10 ft
Shipping Length
34.2 ft
Tail Swing Radius
10.3 ft
Counterweight Clearance
3.7 ft
Ground Clearance
1.6 ft
Track Length
14.4 ft
Length to Center of Rollers
11.4 ft
Track Gauge
7.8 ft
Transport Width
9.9 ft
Maximum Digging Depth
23.1 ft
Reach 6.15 m (20'2")
Reach 3.2 m (10'6")
HD 1.60 m³ (2.09 yd³)
Maximum Reach at Ground Level
35.1 ft
Maximum Cutting Height
32.9 ft
Maximum Loading Height
22.8 ft
Minimum Loading Height
7.5 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
23.3 ft
Maximum Vertical Wall Digging Depth
19 ft
Bucket Digging Force - ISO
40240 lbf
Stick Digging Force - ISO
28330 lbf
  • Cab Monitor Improvements
  1. Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
  3. Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
  5. A notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
  7. Color coded notifications set critical messages apart from the rest.
  9. Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07F
  • Use up to 12% less fuel than the 330D2 Excavator in similar applications.
  • The C7.1 Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
  • Match the excavator to the job with power modes; let Smart mode automatically match engine and hydraulic power to digging conditions.
  • Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
  • Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional –32° C (–25° F) cold start package is available.
  • Work up to 3000 m (9,840 ft) above sea level without de-rating.
  • Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional – 32° C (–25° F) cold start package is available.
  • Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
  • Two levels of fuel filtration protect the engine from dirty diesel fuel.
  • Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
  • The track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
  • The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.
  • The cab has a wide seat that adjusts for operators of all sizes.
  • Control the excavator comfortably with easy-to-reach controls all located in front of you.
  • Standard automatic climate control keeps you at the right temperature all shift long.
  • Advanced viscous mounts reduce cab vibration by up to 50% over previous excavator models.
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
  • Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.
  • Start the engine with a push button; use a Bluetooth® key fob,or the unique Operator ID function.
  • Program your power mode and joystick preferences using Operator ID; the excavator will remember what you set each time you go to work.
  • Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor or with the aid of the jog dial control.
  • Protect your hammer tool from overheating and rapid wear. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds - all to extend the tool’s service life.
  • Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
  • The Cat PL161 Attachment Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy.
  • Find the tool you need – even if it’s hidden beneath overgrowth or debris. The available Bluetooth reader can search for any work tool equipped with Cat asset tracking devices up to a range of 60 m (200 ft).
  • Expect up to 25% less maintenance cost than the 330D2 (savings calculated over 12,000 machine hours).
  • Do all daily maintenance at ground level.
  • Check engine oil level quickly and safely with the latest ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.
  • Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
  • Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours – a 100% increase over the previous filter.
  • The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50% longer than previous filter designs.
  • High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.
  • Boost productivity with proactive service reminders. Our integrated vehicle health management system alerts the operator with step-by-step service guidance, along with parts needed, so you don't experience any unnecessary downtime.
  • S·O·SSM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.
  • Access 100% of daily maintenance points from ground level – no need for you to climb on top of the excavator.
  • Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
  • The standard ROPS cab meets ISO 12117-2:2008 requirements.
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design. A rearview camera is standard, and a right-side-view camera is available.
  • The latest right service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
  • The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
  • Ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
  • Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
  • Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.
  • VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
  • VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
  • Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

* Data field availability can vary by equipment manufacturer.
General Duty Bucket 1650 mm (65 in): 540-4108
General Duty Bucket 1650 mm (65 in): 541-1739
General Duty Bucket 1500 mm (59 in): 541-1738
General Duty Bucket 1800 mm (71 in): 540-4110
General Duty Bucket 1650 mm (65 in): 541-1741
General Duty Bucket 1500 mm (60 in): 346-0931
General Duty Bucket 1350 mm (54 in): 346-0930
General Duty Bucket 750 mm (30 in): 346-0929
Heavy Duty Bucket 1350 mm (54 in): 528-4603
Heavy Duty Bucket 1500 mm (60 in): 541-1751
Heavy Duty Bucket 1200 mm (47 in): 541-1748
Heavy Duty Bucket 1650 mm (66 in): 541-1779
Heavy Duty Bucket 1350 mm (54 in): 541-1782
Heavy Duty Bucket 1500 mm (60 in): 541-1783
Heavy Duty Bucket 1350 mm (54 in): 541-1778
Heavy Duty Bucket 1650 mm (66 in): 541-1784
Heavy Duty Bucket 1500 mm (60 in): 528-4669
Heavy Duty Bucket 1600 mm (63 in): 564-6509
Heavy Duty Bucket 1450 mm (58 in): 565-6339
Heavy Duty Bucket 1750 mm (69 in): 567-1134
Severe Duty Bucket 1050 mm (42 in): 541-1780
Severe Duty Bucket 1350 mm (54 in): 541-1781
Severe Duty Bucket 1500 mm (59 in): 528-4668
Severe Duty Bucket 1500 mm (59 in): 528-4645
Pin Grabber Coupler (CB-Linkage): 455-3912
Pin Grabber Coupler (DB-Linkage): 455-3906
Pin Grabber Coupler (CB-Linkage): 455-3911
G324 Demolition & Sorting Grapple: 587-8977
G324 WH Demolition & Sorting Grapple: 587-8985
G324 WH Demolition & Sorting Grapple: 587-8988
G332 Demolition & Sorting Grapple: 587-8991
G345 Demolition & Sorting Grapple: 608-0756
G332 Demolition & Sorting Grapple: 587-8994
CTV15-1000 Clamshell Grapple
CTV15-1200 Clamshell Grapple
CTV15-1500 Clamshell Grapple
CTV15-1700 Clamshell Grapple
CTV15-1900 Clamshell Grapple
CTV15-2300 Clamshell Grapple
CTV15-1900-BOCE Clamshell Grapple
CTV20-1300 Clamshell Grapple
CTV20-1500 Clamshell Grapple
CTV20-1700 Clamshell Grapple
CTV20-1900 Clamshell Grapple
CTV20-2300 Clamshell Grapple
CTV20-1500-BOCE Clamshell Grapple
CTV20-2300-BOCE Clamshell Grapple
GSH425 4-Tine, 1150-Liter Orange Peel Grapple
GSH425 4-Tine, 950-Liter Orange Peel Grapple
GSH525 5-Tine, 1150-Liter Orange Peel Grapple
GSH525 5-Tine, 750-Liter Orange Peel Grapple
GSH525 5-Tine, 950-Liter Orange Peel Grapple
GSV525 5-Tine, 1150-Liter Orange Peel Grapple
GSV525 5-Tine, 600-Liter Orange Peel Grapple
GSV525 5-Tine, 750-Liter Orange Peel Grapple
GSV525 5-Tine, 950-Liter Orange Peel Grapple
H140 GC
H130 GC S
H160 GC
H140 GC S
H160 GC S
H130 GC
H120 S
H130 S
H140 S
MP332 Demolition Jaw
MP324 Demolition Jaw
MP324 Universal Jaw
MP332 Pulverizer Jaw
MP324 Pulverizer Jaw
MP332 Concrete Cutter Jaw
MP324 Concrete Cutter Jaw
MP332 Shear Jaw
MP324 Shear Jaw
MP324 Tank Shear
P232 Secondary Pulverizer
Cat® Detect with Smart Camera
Cat Product Link
Cat Inspect
Cat Remote Flash
Cat Remote Troubleshooting
VisionLink® Productivity
G324 Demolition & Sorting Grapple: 587-8978
G324 WH Demolition & Sorting Grapple: 587-8986
GSH425 4-Tine, 750-Liter Orange Peel Grapple
MP332 Universal Jaw
MP332 Tank Shear
P224 Secondary Pulverizer
