2134 mm (84 in)

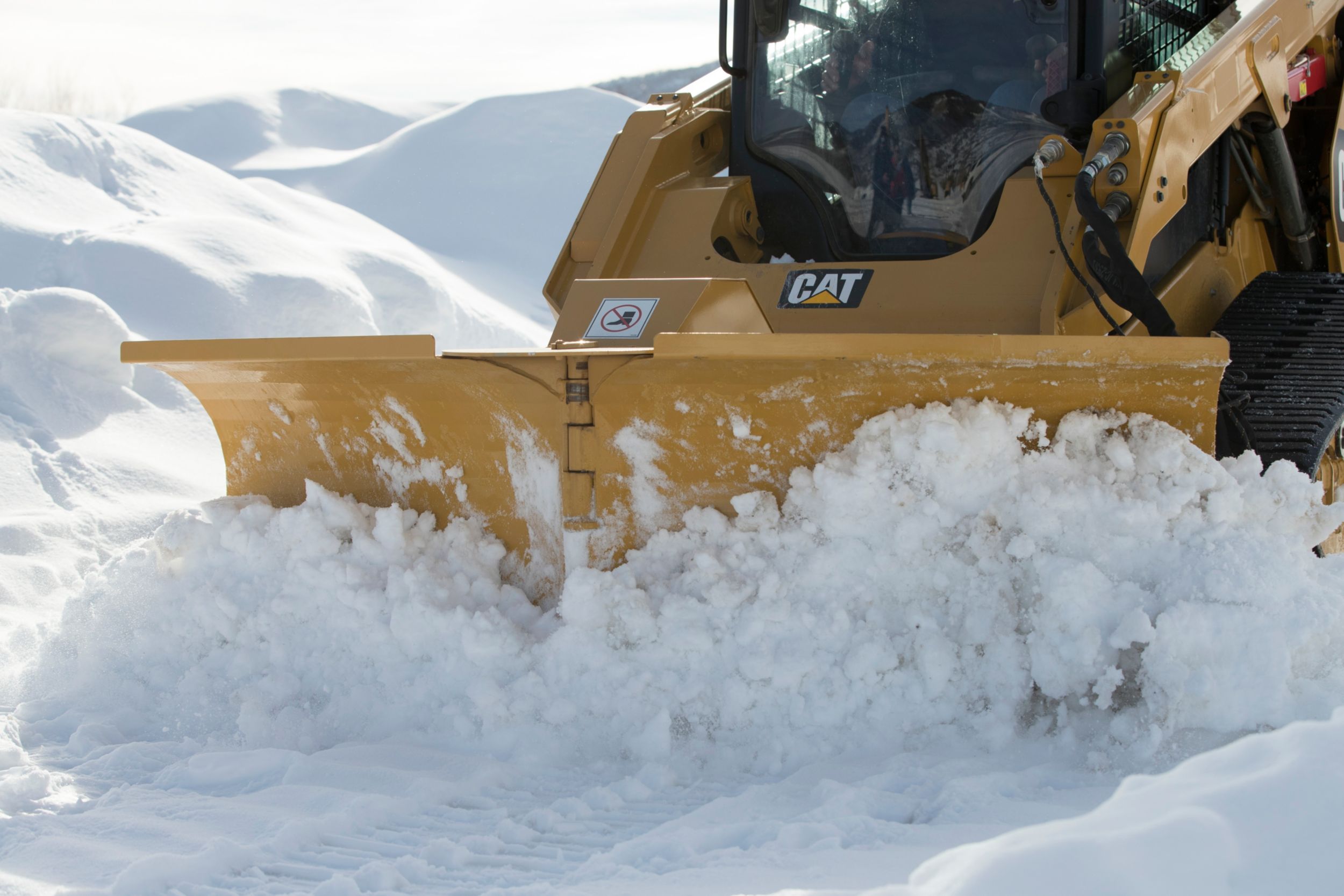

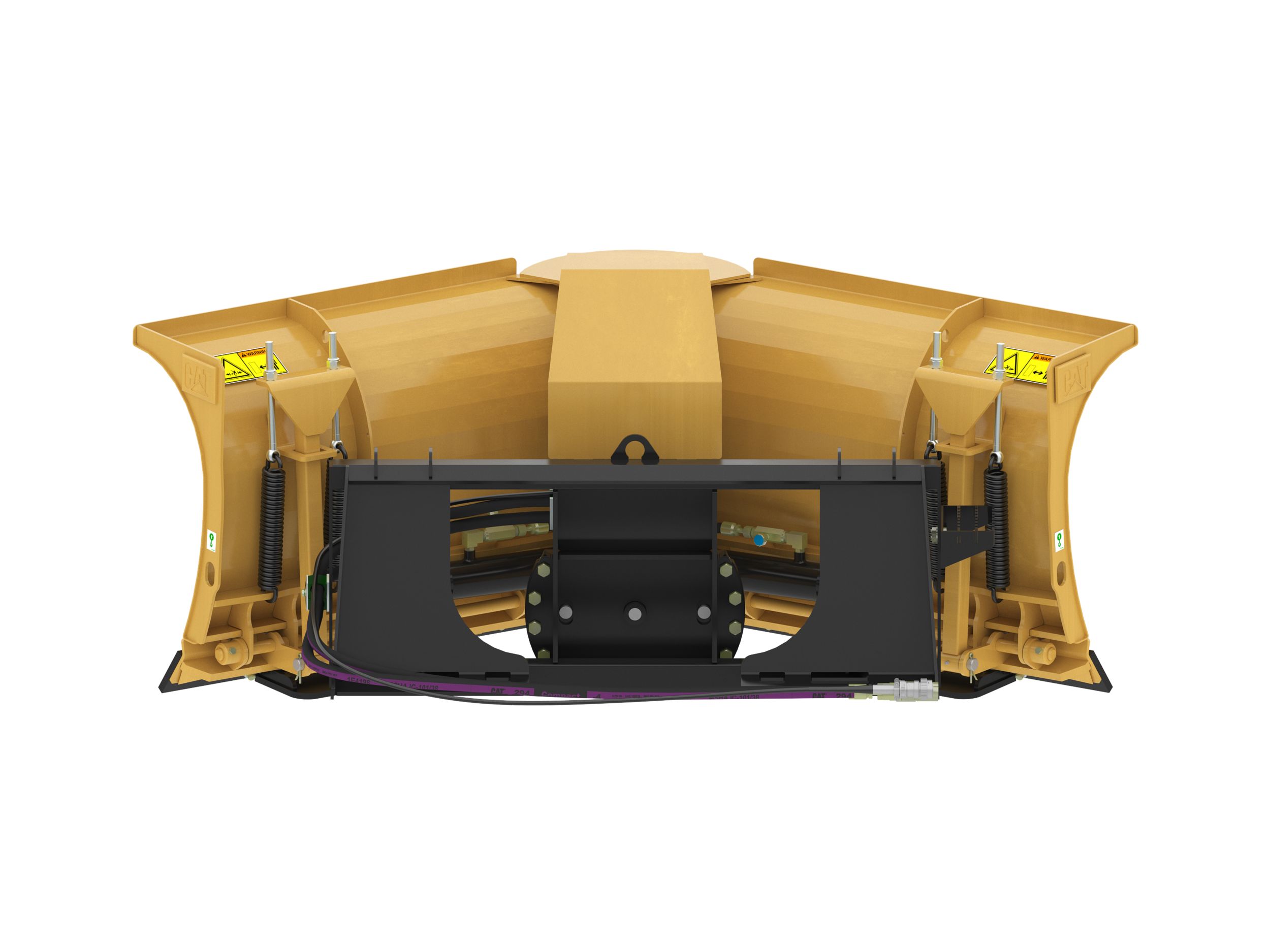

Cat® Multi V-Plows Buckets for Cat Skid Steer Loaders, Compact Track Loaders and Compact Wheel Loaders are a versatile attachment for snow removal applications with the capability to hydraulically angle 5 different blade configurations. Push, plow, sweep, or scoop snow and ice to clear surfaces and restore safe passage to driveways, sidewalks, parking lots, and roadways.
Straight Width
84 in
Angled Width
73 in
Interface Type
Skid Steer Coupler
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Straight Width
84 in
Angled Width
73 in
Interface Type
Skid Steer Coupler
V-Width - Scoop Mode
72.7 in
V-Width - Plow Mode
78 in
Weight
939.2 lb
Blade Height
29 in
Overall Height
32.5 in
Length
52 in
Hydraulic Angling - Left/Right of Center
±35 Degrees
Float
±5 Degrees
Optimal Hydraulic Flow
57-76 lpm (15-20 gpm)
Optimal Hydraulic Pressure
150-230 bar (2176-3340 psi)
Trip Edge Quantity
2
Trip Edge Type
Steel
Trip Edge Height
4 in
Trip Edge Pivot Height
3.3 in
Required Hydraulics
Standard Flow
Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.
Adjustable skid plates reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.
Blade float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.
Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the v-plow and machine.
Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.
V (scoop mode) blade configuration pushes, collects, piles high or holds snow for removal to another area for final clean up.
V (plow mode) blade configuration quickly cuts initial pathway through deep, hard packed snow piles and drifts.
Right/Left angled blade configuration quickly and easily windrows snow to the designated side of the machine.
Straight blade configuration provides maximum width for piling and stacking snow high and clearing light snow cove.
