3.1 m (10 ft)

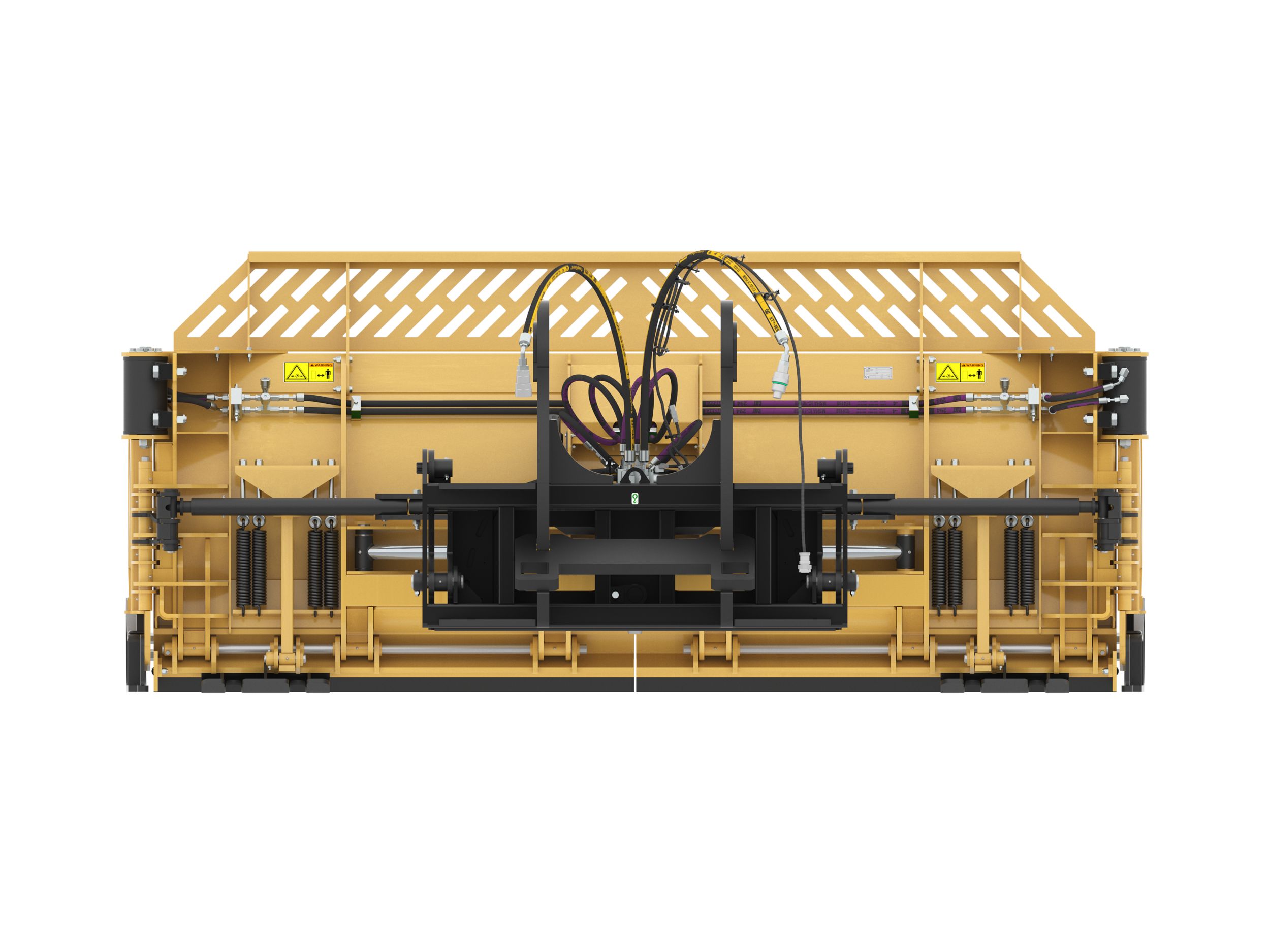

Cat® Snow Wings are designed with versatility in mind. With independently controlled wings and angling capability, the attachment can be configured to suit the needs of any job and continue to adapt to ever changing needs by being able to hydraulically configure for plowing, pushing, and backdraging to enable cleaning and maintaining roadways, sidewalks and other passages for safe passage in winter conditions.
Working Width (Wings Closed)
121.3 in
Overall Width (Wings Closed)
128.1 in
Overall Width (Wings Open)
195.9 in
Specification
Value
Working Width (Wings Closed)
121.3 in
Overall Width (Wings Closed)
128.1 in
Overall Width (Wings Open)
195.9 in
Working Width (Wings Open)
195.9 in
Weight
4398.2 lb
Length
87.6 in
Overall Height
54.9 in
Hydraulic Angling - Left/Right of Center
±36 degrees
Float
±5 degrees
Wing Rotation
180 degrees
Optimal Hydraulic Flow
90-190 L/min (24-50 gpm)
Optimal Hydraulic Pressure
230-280 bar (3300-4061 psi)
Interface Type
Fusion™ Coupler
Trip Edge Type
Steel
Trip Edge Height
5.3 in
Trip Edge Quantity
2
Required Hydraulics
3rd Valve
Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.
Rear skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.
Snow Wing can float left to right and front to back to maintain ground contact for clean passes.
Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the wing and machine.
Adjustable flow control allows manual adjustment of the speed the wings move, and angle occurs. The control on the machine is proportional, however the three valves, one for each wing and one for angle, allow for further refinement of speed.
Allows 180 degrees of rotation for each wing for maximum versatility. Both wings are independently controlled. The use of actuators rather than cylinders also keeps the components better protected from damage.
Stops on the attachment keep the wings from contacting the tires or tracks of the machine regardless of plow angle to prevent damage.
Plow can angle left or right 36 degrees allowing the operator more control over direction of the snow.
Cutting edge is easy to replace, and can be reversed when dull to get another life.
Follow surface contour for more consistent snow clearing.
Crossover relief allows plow to angle if it impacts a solid object. This helps prevent damage to the attachment in extreme conditions.
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
