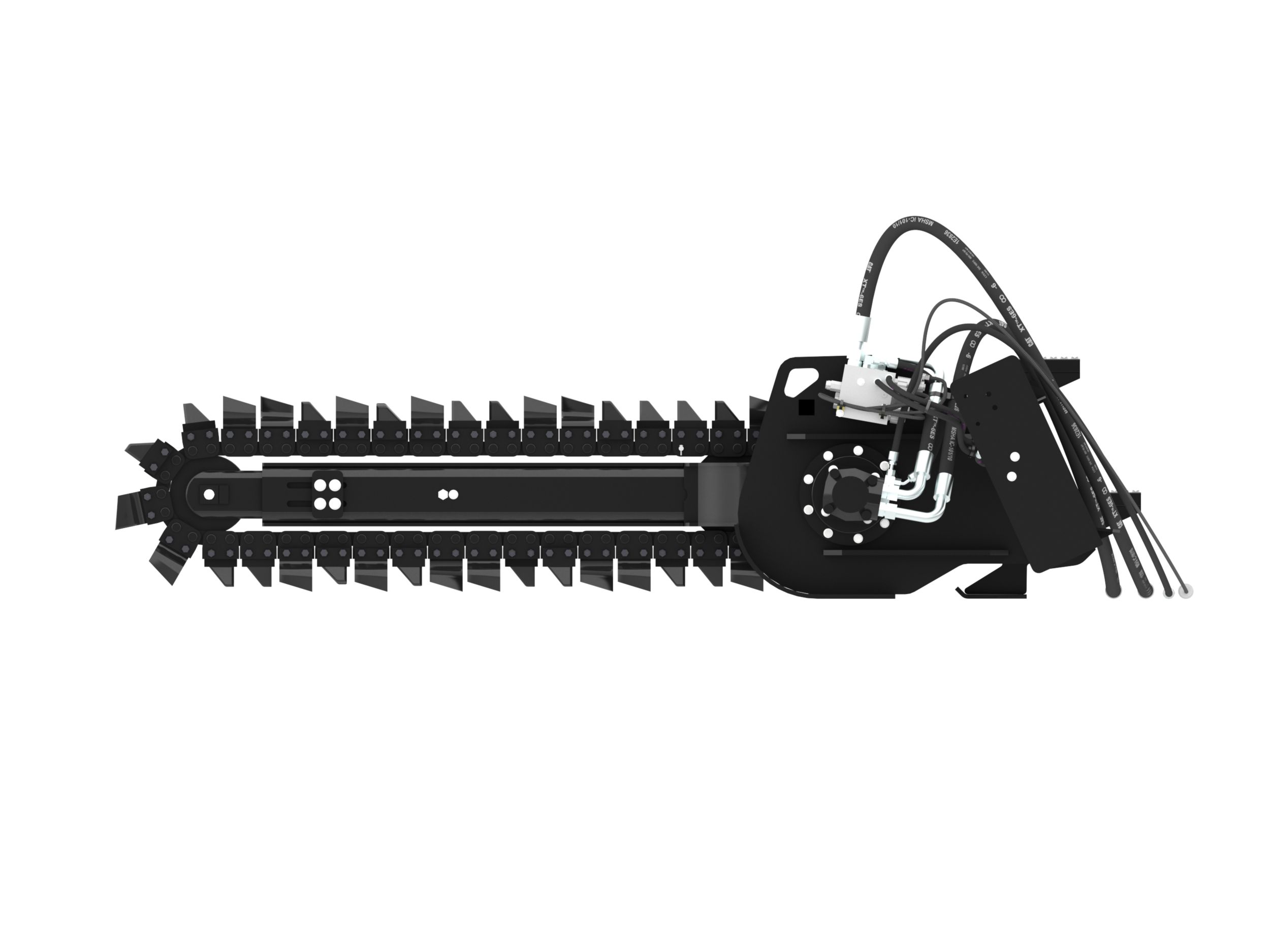

T315 Hydraulic Side Shift
Cat® Trenchers are designed for cutting narrow straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe. Trenchers are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance.
Standard Boom Length
60 in
Cutting Width
6 in
Chain Type
Standard
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Standard Boom Length
60 in
Cutting Width
6 in
Chain Type
Standard
Required Hydraulics
High Flow
Overall Width
74.8 in
Overall Length
118.5 in
Weight
1212.1 lb
Overall Height
30.9 in
Optimal Hydraulic Flow
95-152 L/min (25-40 gpm)
Optimal Hydraulic Pressure
207-310 bar (3300-4500 psi)
Drive Shaft Speed at Maximum Flow
207 rpm
Side Shift Travel
22 in
Maximum Auger Clearance
21 in
Spoil Auger Diameter
18 in
Optional Cutting Widths
203, 254, 305 mm (8, 10, 12 in)
Designed for cutting narrow, straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe.
Direct drive system features a variable speed, bi-directional, gerotor style motor that delivers optimal chain speed, chain pull and torque for maximum trenching performance in a broad range of soil types.
Durable, double standard anti-back flex chain eliminates chain backlash and ensures teeth are positioned at the most efficient angle for smooth cutting and longer tooth life.
Hard-faced, tungsten carbide steel cupped teeth deliver long life in many soil conditions. Teeth are spaced for optimum digging performance in most soil types.
Hydraulic or manual side shift provides close trenching flexibility near structures or obstructions. Hydraulic side shift, standard on the T315 (optional on T109 and T112) is controlled from operator’s compartment using the standard flow auxiliary hydraulic circuit selector control.
Optional chain types and cutting widths are available for specific soil, digging requirements and trench widths. These chain types include Standard, Combo, Terminator, and Rockfrost.
Large diameter bolt-on spoil auger improves loose soil removal from trenching area and allows for quick, easy removal and servicing.
Optional bolt-on crumber bar with shoe improves soil removal to provide cleaner trench. Shoes available in size range to accommodate trench width.
