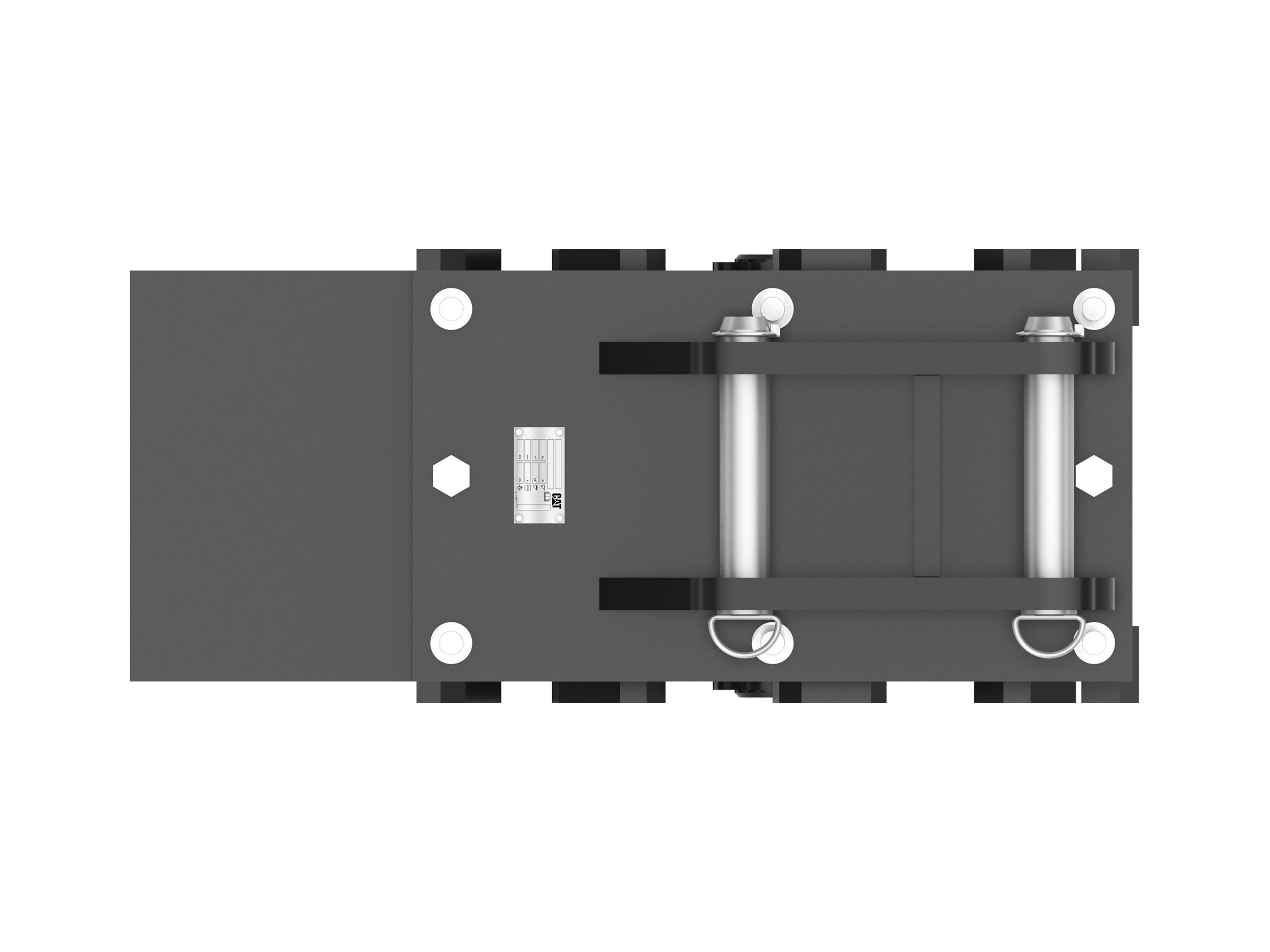

457 mm (18 in) 7-8 Ton, Pin On
Cat® Compaction Wheels for Backhoe Loaders and Mini Excavators provide a low cost option for trench compaction. The wheels feature tapered roller bearings and tampered foot design with static pad rollers, to allow for smooth operation and achieving a high level of compaction. Six to ten passes are usually adequate to achieve compaction in normal soil conditions, dependent on the required compaction levels.
Compaction Width
17.7 in
Number of Wheels
3
Machine Class
7-8 Ton Mini Excavators
Specification
Value
Compaction Width
17.7 in
Number of Wheels
3
Machine Class
7-8 Ton Mini Excavators
Number of Pads
27
Weight
1228 lb
Overall Length
39.3 in
Overall Height
45.9 in
Overall Width
17.7 in
Interface Type
Pin On
Used to compact trenches and easily backfill.
Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.
