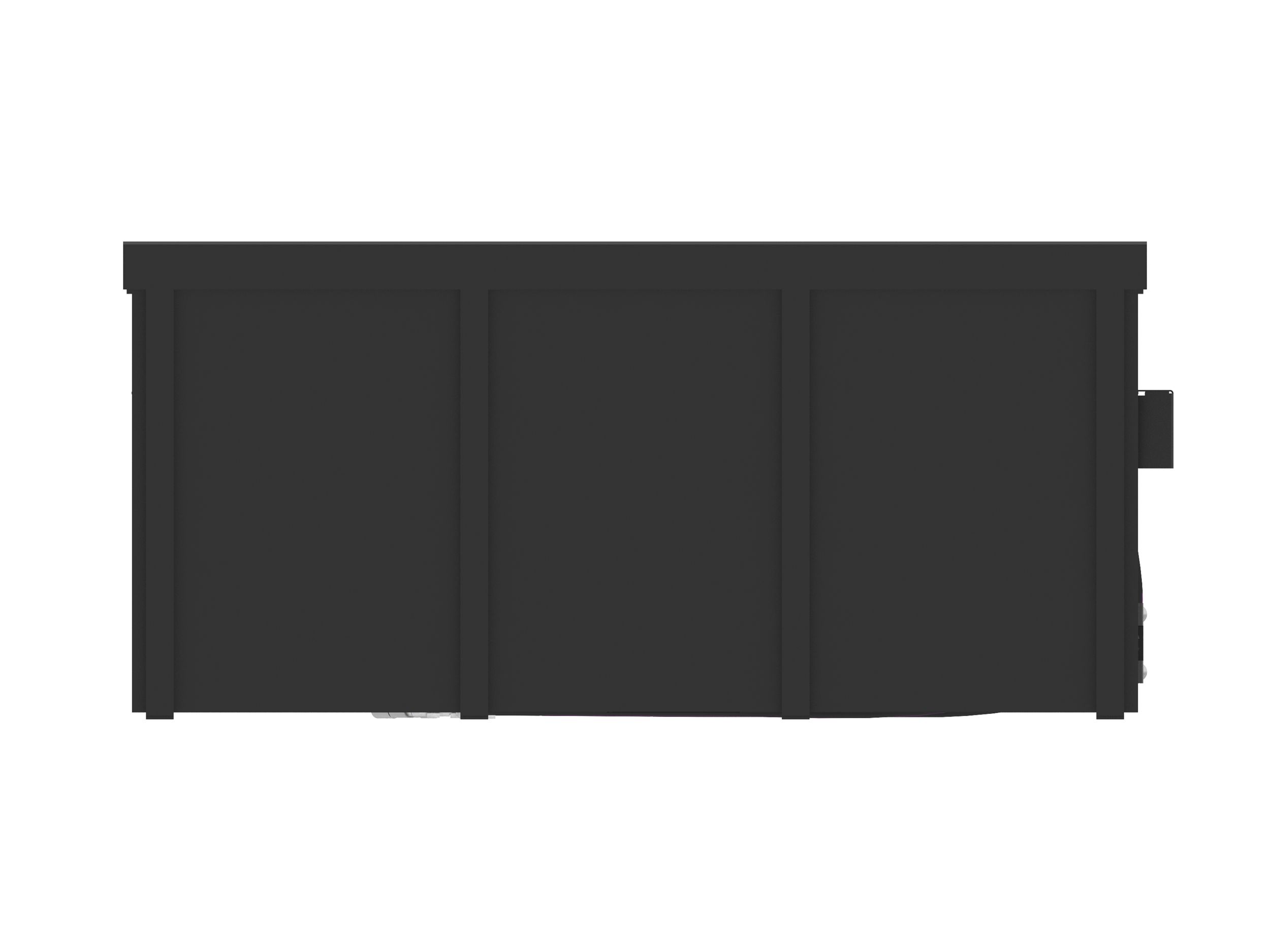

BD118 Sand
Cat® Side Discharge Buckets for Cat Skid Steer Loaders, Compact Track Loaders and Compact Wheel Loaders are designed to handle a variety of material management and aggregate distribution needs. The left or right discharge design eliminates the need for awkward maneuvering, saving time. Spread material in forward or reverse, left or right and get into the tightest areas of your operation.
Capacity
1 yd³
Width
73.2 in
Required Hydraulics
Standard Flow
Specification
Value
Capacity
1 yd³
Width
73.2 in
Required Hydraulics
Standard Flow
Weight
1058.2 lb
Height
34.1 in
Length
50 in
Optimal Hydraulic Flow
76-87 lpm (20-23 gpm)
Optimal Hydraulic Pressure
130-230 bar (2000-3300 psi)
Belt Width
12 in
Interface Type
Skid Steer Coupler
Overall Width
74.8 in
Designed to collect and discharge sawdust, mulch, straw and sand into barns, stalls and orchards, backfill top soil or pea gravel into trenches and spread silage.
Manually adjustable discharge doors on both sides regulate the volume of discharged material. Thick plating reinforces the doors for long lasting performance.
Dual direction rubber conveyor belt is heavy-duty with a raised chevron tread and adjustable tension belt. Dual direction drive boosts productivity by eliminating the need for awkward maneuvering commonly encountered in tight areas.
High torque agitator assembly is directly powered by an independent hydraulic motor. Motor and conveyor systems rotate in conjunction on bi-axis planes for consistent flow and to prevent material from bridging inside the bucket.
Dual direct drive hydraulic motors drive the belt and a third motor drives the agitator providing consistent hydraulic flow. Motors are externally mounted for convenient access.
Welded-on serrated safety step allows for easy entry and exit from the cab.
Tool mounted operation and maintenance manual required for proper operation of the work tool attachment is sealed from the elements.
