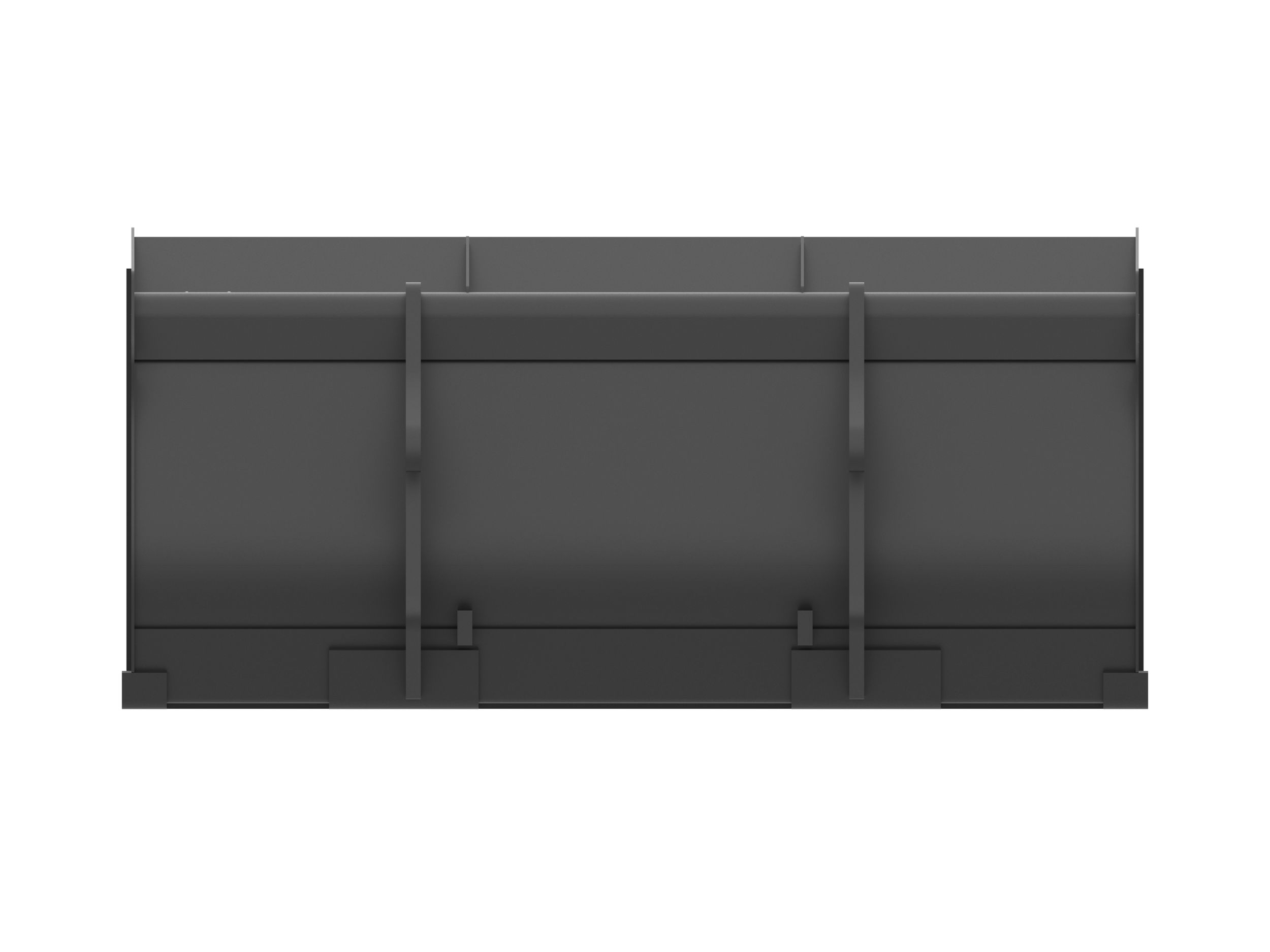

1.4 m3 (1.8 yd3), ISO Coupler, Bolt-On Teeth
Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.
Width
81.1 in
Weight
1000.9 lb
Height
38.2 in
Specification
Value
Width
81.1 in
Weight
1000.9 lb
Height
38.2 in
Length
44.7 in
Capacity
1.8 yd³
Base Edge Thickness
0.8 in
Cutting Edge Thickness
0.6 in
Interface Type
Horizontal Pin Lock (L35)
Designed to improve material retention when truck loading or working on rough, uneven ground.
Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.
Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.
Buckets are available with bolt-on cutting edges or bolt-on teeth.
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
