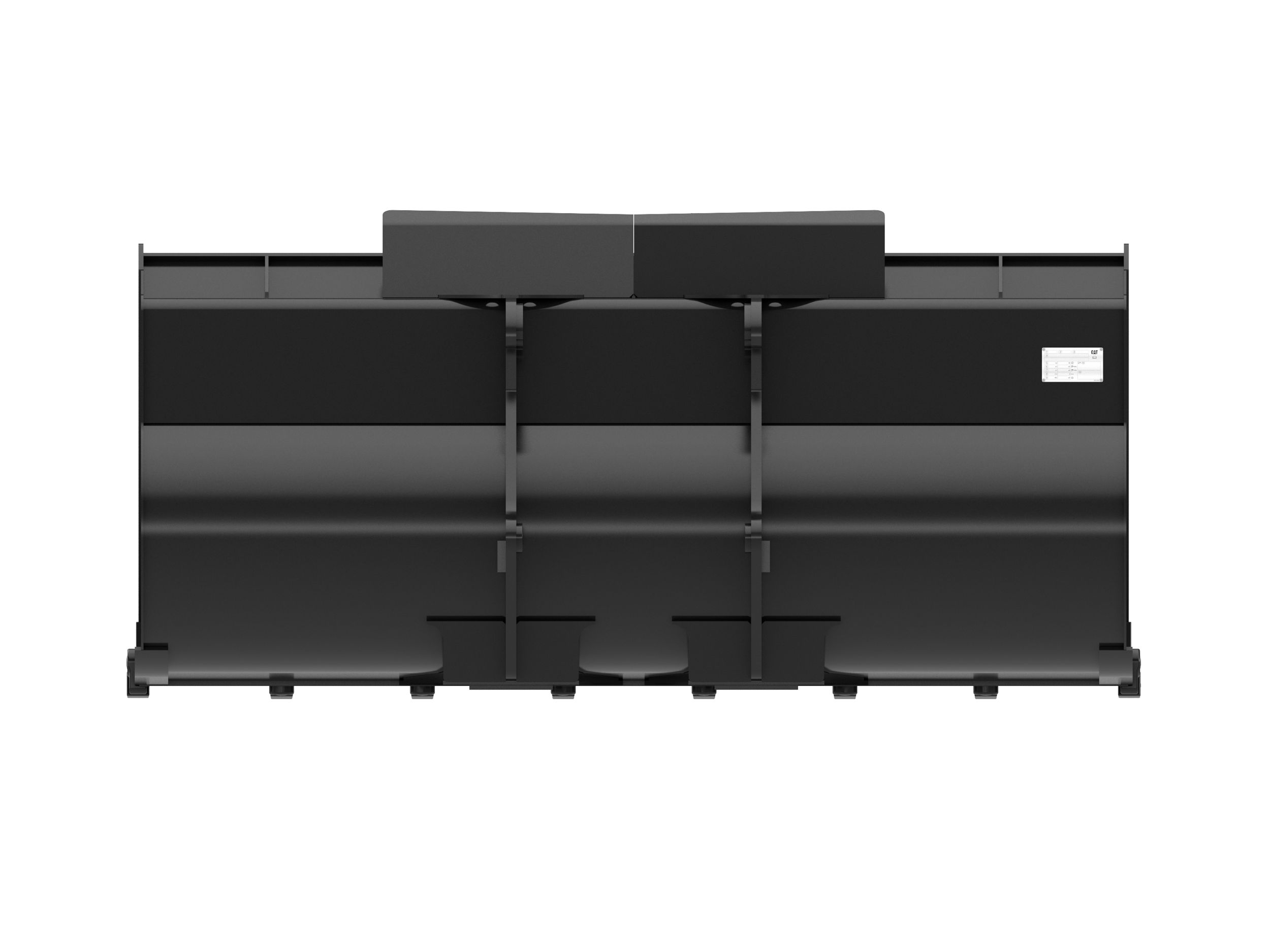

1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
Width
95.6 in
Weight
1300.9 lb
Height
45.8 in
Specification
Value
Width
95.6 in
Weight
1300.9 lb
Height
45.8 in
Length
50.2 in
Capacity
2.1 yd³
Base Edge Thickness
0.7 in
Interface Type
IT Coupler
Performance Series buckets improve productivity, increase material retention and reduce fuel burn with easier pile work in a wide variety of applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Performance Series profile for easy loading and maximum carry load.
Penetrating rounded sidebars help funnel material into the bucket, holding more material with less spillage.
Improved strike plane leads to better sight lines for faster load cycles.
Open throat design improves heap size and fill factor.
